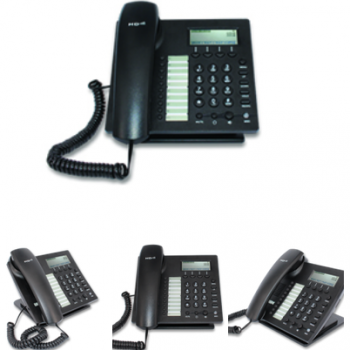

Standard Business VoIP IP Phone IP622C
Highlights:
▪ 2*10/100M RJ45 Port
▪ 320*240 TFT
▪ 2 Line-Keys & 2 SIP account
▪ 4 customizable buttons for LCD menu selection
▪ 810 multi-function keys, (Without BLF)
▪ Support the headset and wall
▪ Auto Configuration- TFTP/HTTP/HTTPs/TR-069/SNMP
Description
What this product does
A Cost-effective very popular business IP phone.
Appearance
1. Front Panel
2. Side Panel
Applied Environment
Operation Temperature: 0~50 Degree C
Storage Temperature: -25~ 85 Degree C
Relative Humidity: 10%~90% No Condensing
Shock: Up to 75cm (30 inches) `Drop upon Package
Codec and Voice Features
The IP622C supports 5 codec: G.711 (A-Law, U-Law), G.729A/AB, G.723 with 5.3 kbps and 6.3 kbps, iLBC and G.722 (HD).
The IP622C supports VAD (Voice Active Detection), CNG (Comfort Noise Generation), AEC, ANC (Automatic Noisy Cancel), AGC (Automatic Gain Control) and adaptive Jitter buffer.
Call Features
2 lines, Call Waiting, Auto Answer, Music on hold, Caller ID and call waiting ID, 3-way Conference, Call Hold, Call Forwarding, Call Mute, Delayed Hotline , Redial, Call Transfer: blind transfer and attended transfer, Dial Plan, Phonebook, Black List, MWI, SMS, DND,Full-duplex Speakerphone Call log: redial list, answered calls and missed calls
Volume Adjustment: Handset/Headset, Speaker and Ringer
DTMF Relay: In-band, Out-band (RFC2833) and SIP INFO
Management
Menu Configuration, SNTP Time Synchronization, Daylight Saving Time, Alarm Clock, Password Reset, Web access management, Local and Remote Syslog (RFC3164), Factory Default, Firmware Upgradeable, Web Management Interface, Multi User Level, SNMPv2, TR069, Auto Provisioning: TFTP (including option 66), HTTP and HTTPS
Applications
MAC Address Cloning, VPN: PPTP and T2TP, DMZ, Direct IP to IP calling, IP conflict detection, Built-in
NAT Router, DHCP Server and Client,
Layer 2 QoS: 802.1Q/VLAN ID and 802.1p PRI
Layer 3 QoS: SIP QoS, RTP QoS and Data QoS
SIP proxy redundancy: dynamic via DNS SRV, A records
NAT Traversal: Static NAT Route and Traversal by STUN
Web Configuration
The IP622C supports web configuration with MD5 authentication, and two level configurations which are admin mode and user mode. In admin mode user can configure all parameters, while in user mode user can only configure partly parameters with partly can’t configuration such as VoIP settings.
IP622C Main Features
IP622C is high-end office IP phones. It has eight lines, four dynamic soft keys. high-quality speaker, 10 multi-function keys, and RJ9 headset port. Each line can be configured independently of the telephone number, or composite shared telephone number.
IP622C support the latest configuration of various methods, such as: TR-069, HTTPS, HTTP and TFTP. Users can fully experience the high-definition voice, eight function keys, and intuitive menu options to bring convenient, fast.
IP622C Series phone Features Comparison
| Description | IP622C | IP542N | IP622CWP |
| LED | 128 * 64 LCD screen | 128 * 64 white backlit LCD screen | 128 * 64 white backlit LCD screen |
| WIFI | × | √ | √ |
| Ethernet Port | 2*RJ45 10/100Mbps | 2*RJ45 10/100Mbps | 2*RJ45 10/100Mbps |
| Headset | RJ9 | 3.5mm | RJ9 |
| Soft Key | 4 | 4 | 4 |
| Multi-function key | 10 | × | 10 |
| POE | × | × | √ |
| Code | G.711(A-law, U-law), G.723, G.729A/B, G.722，iLBC | ||
| TR069 | √ | √ | √ |
| SNMP | √ | √ | √ |
| VPN | PPTP/L2TP/Open VPN | ||
| Auto configuration |
TPTP/HTTP/HTTPS Tro69 Network management | ||
| Telephone book Call history SMS |
√ | √ | √ |
IP622C Specification
| Hardware Features | |
| Interface | 2 RJ-45 port (10/100 Ethernet Ports) 1 RJ9 for headset Headset jack and Wall-mount |
| Display | 128×64 LCD |
| Phone Keys | 2 Line keys and 4 Soft keys, MENU, UP, DOWN, MUTE/DEL, REDIAL HOLD, MSG, Headset, Handsfree 12 Dialing Buttons (0~9, *, #) 10 Multi-functional key without BLF |
| Power Supply | AC/DC Adapter * AC Input: 100~240V, 50~60Hz * DC Output: 5V, 1A |
| Environmental | Operation Temperature: 0~50 Degree C Storage Temperature: -25~ 85 Degree C Relative Humidity：10%~90% No Condensing |
| Dimension | (L) 191 x (W) 205 x (H) 75 mm |
| Unit Weight | 720g (No packet) |
| Software Features | |
| Audio Codec Features | G.711 (A-Law, μ-Law) G.722 (HD) G.723.1 G.729AB G.726 iLBC Adaptive Jitter Buffer Management Voice Activity Detection Comfort Noise Generation Echo Cancellation |
| Protocols | SIP V2 (RFC 3261,3262,3263,3264) SDP (RFC2327) RTP/RTCP (RFC1889 and RFC1890) NAPTR for SIP URI Lookup (RFC2915) STUN (RFC 3489) ARP/RARP (RFC 826/903) SNTP (RFC 2030) TFTP/HTTP/HTTPS for Auto Provisioning DNS/DNS SRV (RFC1706 and RFC 2782) IEEE802.1Q VLAN/802.1p and IP TOS SNMPV2 TR069（TR104/TR098/TR111） |
| Management | Firmware Upgradeable Web Management Interface Password Management Local and Remote Syslog (RFC3164) Auto Provisioning: TFTP, HTTP and HTTPS SNTP Time Synchronization Multi User Level Auto Provision Support TR069 management mode |
| Applications | SMS Function MAC Address Cloning SIP proxy redundancy DNS SRV Direct IP to IP calling Traversal by STUN VPN: pptp,l2tp,OpenVPN QoS with Layer 2 and Layer 3 DHCP Server and Client IP conflict detection Support Mutil-Vlan |
| Call Features | 2 lines Auto Answer 3-way Conference Music on hold Call Hold Call Forwarding Call Mute Call Transfer Call Waiting Call Pickup MWI CID and CWCID DTMF Relay: In-band, Out-band(RFC2833) and SIP Info Full-duplex Speakerphone Hotline Redial Dial Plan Volume adjustment- handset/handfree/speaker/ringing |
| Phone Features | Customized Ring Tone SMS (100 records) Call History (100 records ) – Most Recently Missed Calls – Most Recently Received Calls – Most Recently Dialed Numbers Phone book ( 100 records) Speed Dial (10 records ) |
